communities

2926577 rows


Description

Stores Commmunity Data

Columns

Column Type Size Nulls Auto Default Children Parents Comments
id VARCHAR 36 null
centre_id VARCHAR 36 √ null
user_id VARCHAR 36 √ null
users.id communities_ibfk_1 R
batch_id VARCHAR 36 √ null
subject_id VARCHAR 36 √ null
lesson_id VARCHAR 36 √ null
title VARCHAR 255 √ null
content MEDIUMTEXT 16777215 √ null
community_type VARCHAR 36 √ null
created_at DATETIME 19 √ null
updated_at DATETIME 19 √ null
state_id VARCHAR 36 √ null
deleted_at TIMESTAMP 19 √ null
deleted_by VARCHAR 36 √ null
tenant_id VARCHAR 36 √ null
old_data_id INT 10 √ null
course_id VARCHAR 36 √ null
creator_name enum('show', 'hide') 4 √ null
all_learners TINYINT 3 √ 0

Indexes

Constraint Name Type Sort Column(s)
PRIMARY Primary key Asc id
community_type Performance Asc community_type
created_at Performance Desc created_at
deleted_at Performance Asc/Asc/Asc/Asc deleted_at + user_id + tenant_id + created_at
fk_communities_1_idx Performance Asc centre_id
fk_communities_2_idx Performance Asc user_id
fk_communities_3_idx Performance Asc batch_id
fk_communities_4_idx Performance Asc subject_id
fk_communities_5_idx Performance Asc lesson_id
state_id Performance Asc state_id

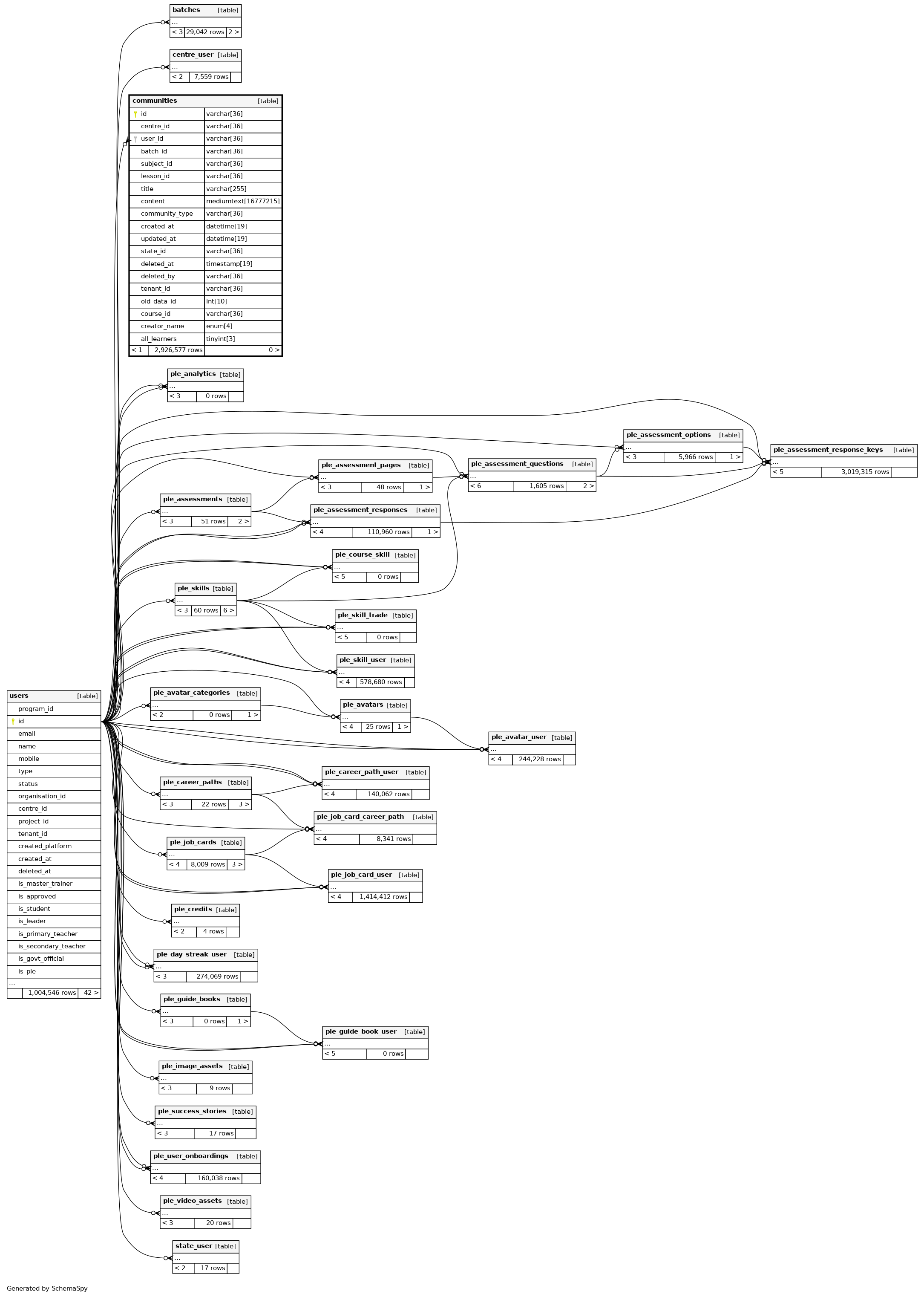

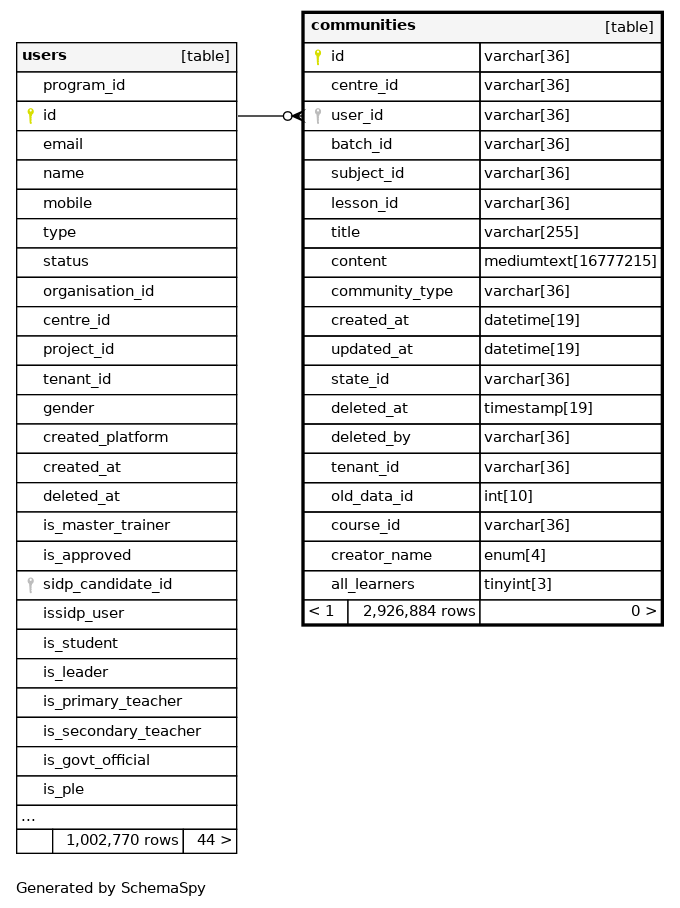

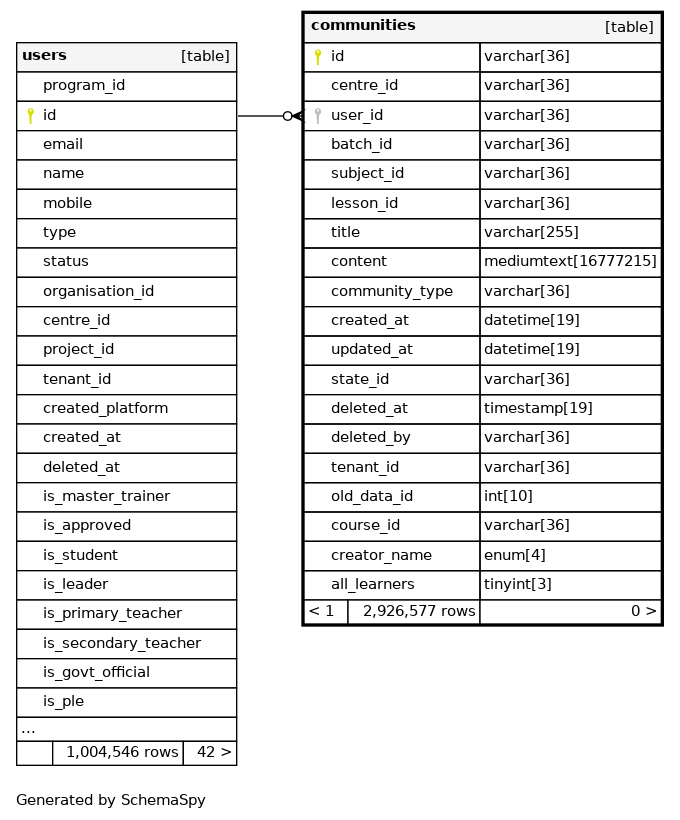

Relationships

Close relationships within degrees of separation
